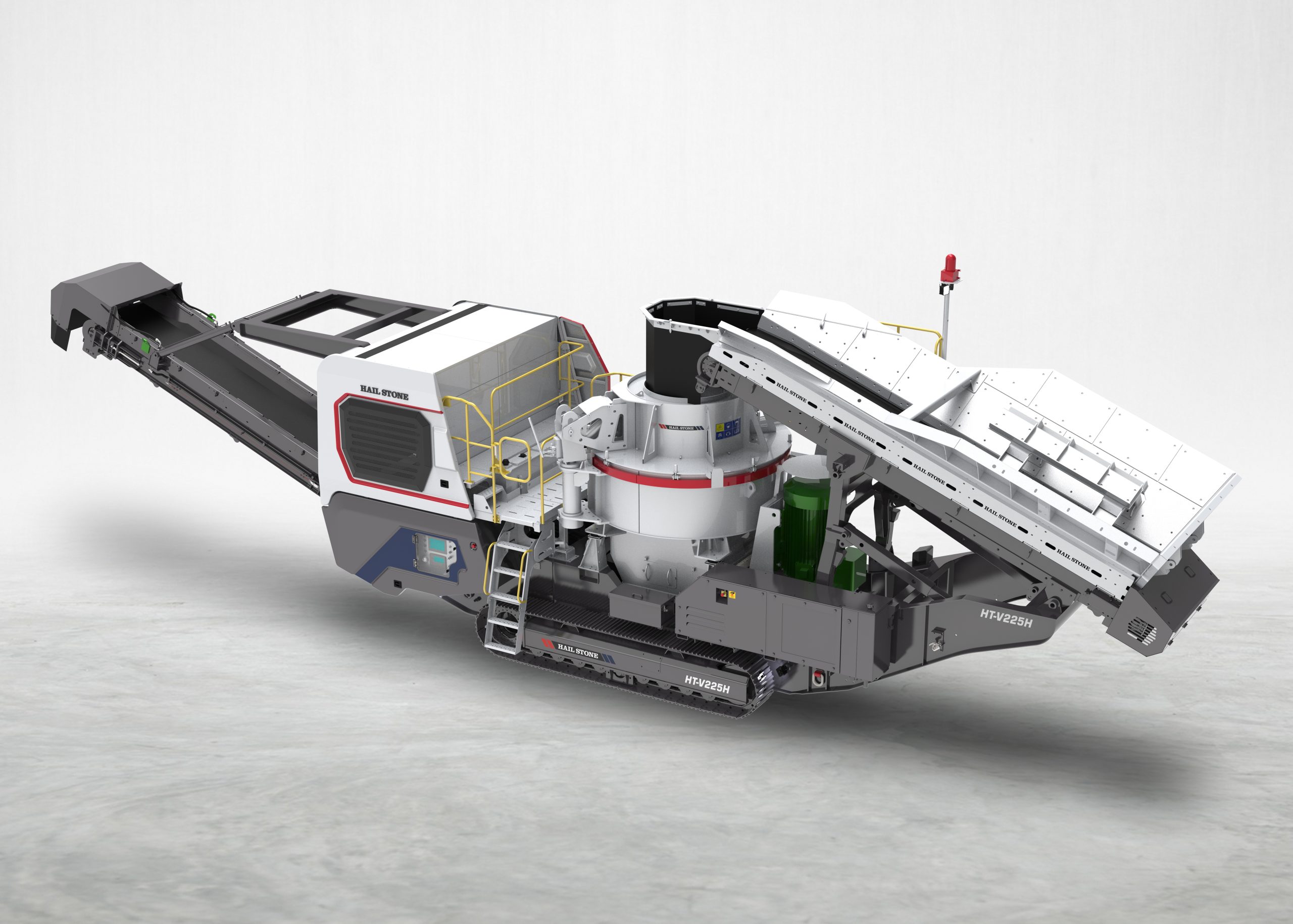

| TRACK MOUNTED VSI | HT V225-H |
|---|---|
| Model | HT V225-H |
| CRUSHER | |
| Crusher Model | VSIEP8X225 |
| Feed Size, mm (in) | 45 (1.8) |
| *Capacity, mtph | 150 – 350 |
| SYSTEM | |
| Hopper Capacity (Extended), m³ | 6 / 10* |
| Feed Belt Width, mm (in) | 1000 (39.4) |
| Feed Height, mm (in) | 3150 (124) |
| MAIN CONVEYOR | |
| Belt Width, mm (in) | 1000 (39.4) |
| Discharge Height, mm (in) | 2800 (110.2) / 3800 (149.6) |
| Stock Pile Capacity, m³ | 75 |
| UNDER CARRIAGE | |
| Shoe Width, mm (in) | 400 (15.7) |
| Gradability | 15° |
| Hydraulic Tank Capacity, litre | 130 |
| POWER UNIT | |
| Power, kW | 364 |
| Generator Power, kVA | 500 |
| Engine / Alternator | SCANIA DC13 / CAT C13 with Stamford / LS Alternator |
| Diesel Tank Capacity, litre | 600 |
| DIMENSIONS | |
| Transportation (L × W × H), mm (in) | 16500 × 2850 × 3550 (649.6 × 112.2 × 139.8) |
| Working (L × W × H), mm (in) | 15500 × 2850 × 3550 (610.2 × 112.2 × 139.8) |
| Weight, kg (lbs) | 40,000 (88,400) |
Note: * Extended hopper capacity. Capacity and performance may vary depending on feed material characteristics, moisture content, and operating conditions.
