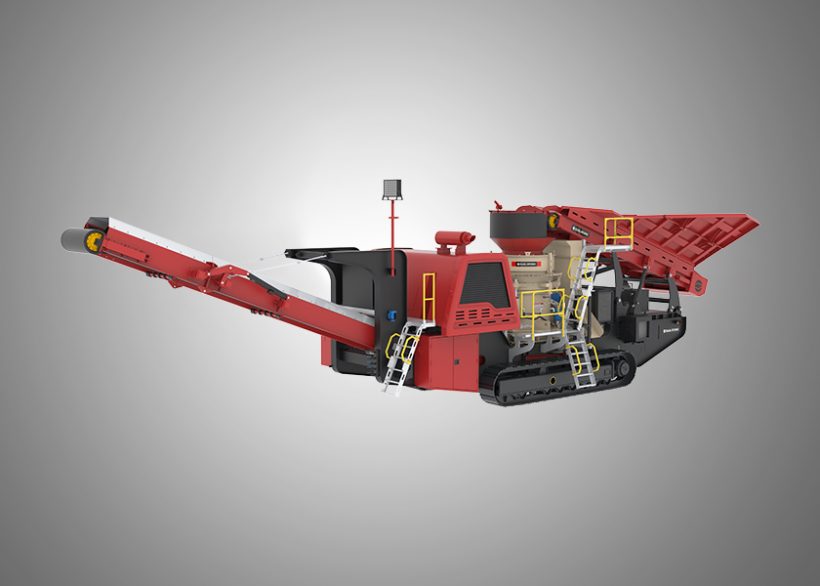

| TRACK MOUNTED CONE | HAILTRACK-HT Series |
|---|---|
| Model | HT2500EC |
| Crusher | |
| Model | EC2500 |
| Opening Size, mm (in) | 190 (7.5) |
| CSS Range, mm | 19 - 38 (0.75 - 1.5) |
| *Capacity, mtph | 150 - 260 |
| System | |
| Hopper Capacity (Extended), m3 | 6/9* |
| Feed belt width, mm (in) | 1000 (39.4) |
| Feed height, mm (in) | 2800 (110.3) |
| Main Conveyor | |
| Belt Width, mm (in) | 1000 (39.4) |
| Discharge Height, mm (in) | 3700 (145.7) |
| Stock Pile Capacity, m3 | 75 |
| Under Carriage | |
| Shoe Width, mm (in) | 500 (20) |
| Gradability | 30o |
| Hydraulic Tank Capacity, litre | 350 |
| Power Unit | |
| Power, kW | 269 |
| Generator power, kVA | 400 |
| Engine | Scania/Volvo/CAT with Stamford Alternator |
| Diesel Tank Capacity, litre | 600 |
| Dimensions | |
| Transportation (L x W x H), mm (in) | 16500 x 3400 x 3650 (649.6 x 133.9 x 143.7) |
| Working (L x W x H), mm (in) | 16750 x 3400 x 4348 (659.5 x 133.9 x 171.2) |
| Weight, kg (lbs) | 40000 (88184.9) |
| *Optional | |
