HomeProductsStationary crushers & ScreensFeeders

Hail Stone

Feeders

Features

features
long lasting wear parts
The Feeder is built with durable components to ensure longevity, minimizing the need for frequent part replacements.

01

features
flexible & reliable operation
Designed for consistent performance, the feeder adapts to different material flows, ensuring smooth operation.

02

features
easy installation
With a user-friendly design, the Feeder is easy to install, allowing for quick setup and reduced lead times

03

features
maximum downtime
Engineered for reliability, the Feeder is designed to keep operations running with minimal interruptions.

04

Models

PAN FEEDERS

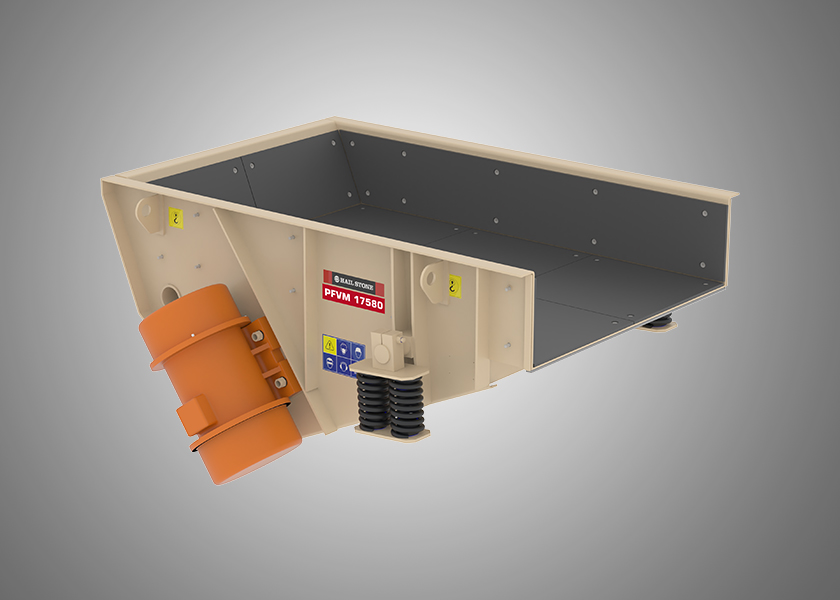

PFVM17580 PFVM17580
Pan Feeder - PFVM series

PFVM17580

Effective length, mm
1750
  • Power, kW(hp)
    2 x 1.5
  • Capacity, mtph
    250 - 300
PFVM2208 PFVM2208
Pan Feeder - PFVM series

PFVM2208

Effective length, mm
2200
  • Power, kW(hp)
    2 x 2.29
  • Capacity, mtph
    300 - 350
PFVM2210 PFVM2210
Pan Feeder - PFVM series

PFVM2210

Effective length, mm
2200
  • Power, kW(hp)
    2 x 3.8
  • Capacity, mtph
    400 - 450
PFVM2012 PFVM2012
Pan Feeder - PFVM series

PFVM2012

Effective length, mm
2000
  • Power, kW(hp)
    2 x 3.8
  • Capacity, mtph
    500 - 550

GRIZZLY FEEDER

GFEM3209 GFEM3209
Grizzly Feeder - GFEM Series

GFEM3209

Effective length, mm
3200
  • Power, kW(hp)
    2 x 3.8
  • Capacity, mtph
    250 - 300

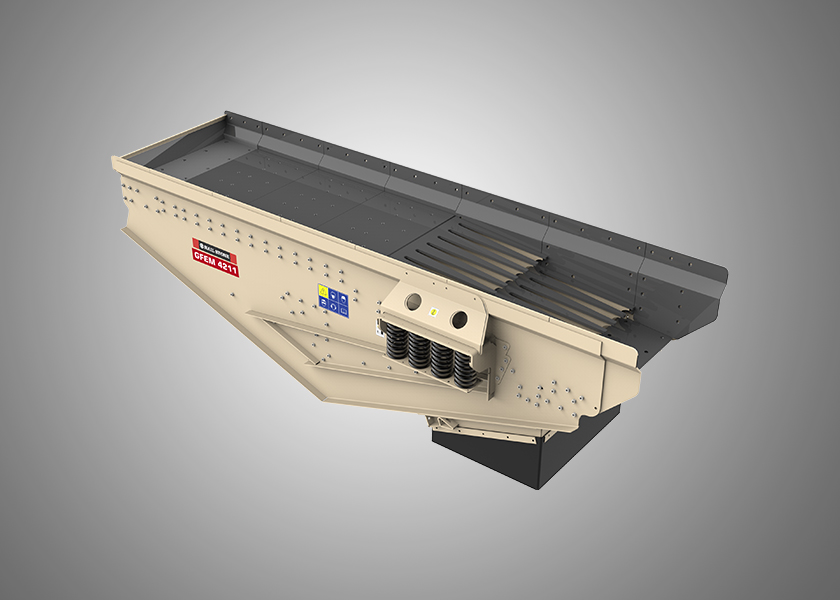

GFEM4211 GFEM4211
Grizzly Feeder - GFEM Series

GFEM4211

Effective length, mm
4200
  • Power, kW(hp)
    2 x 5.5
  • Capacity, mtph
    350 - 400
GFEM4513 GFEM4513
Grizzly Feeder - GFEM Series

GFEM4513

Effective length, mm
4500
  • Power, kW(hp)
    2 x 7.5
  • Capacity, mtph
    500 - 550

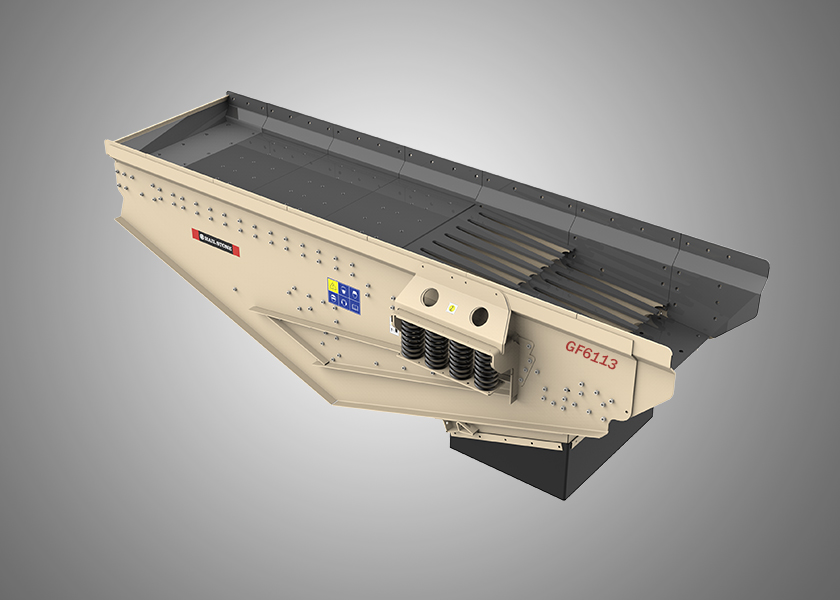

GF6113 GF6113
Grizzly Feeder - GFEM Series

GF6113

Effective length, mm
6100
  • Power, kW(hp)
    1 x 30
  • Capacity, mtph
    550 - 600

Technical Specification

Pan Feeder Series

FEEDER Pan Feeder
Model PFVM17580 PFVM2208 PFVM2210 PFVM2012
Effective length, mm 1750 2200 2200 2000
Effective width, mm 800 800 1000 1250
Power, kW(hp) 2 x 1.5 2 x 2.29 2 x 3.8 2 x 3.8
Capacity, mtph 250 - 300 300 - 350 400 - 450 500 - 550
Approximate weight, kg (lbs) 1025 (2260) 1145 (2524) 1479 (3261) 1729 (3812)
Top size of feed, mm 200 200 200 300

Grizzly Feeder Series

FEEDER Grizzly Feeder
Model GFEM3209 GFEM4211 GFEM4513 GF6113
Effective length, mm 3200 4200 4500 6100
Effective width, mm 900 1100 1300 1300
Power, kW(hp) 2 x 3.8 2 x 5.5 2 x 7.5 1 x 30
Capacity, mtph 250 - 300 350 - 400 500 - 550 550 - 600
Approximate weight, kg (lbs) 2750 (6063) 4250 (9370) 6278 (13840) 8000 (17635)
Top size of feed, mm 450 700 1100 1200

Download brochures

Formate Name Download
Feeder
