Hail Stone

Vibrating Screen

Features

features
compact & modular design

The Vibrating Screen's modular structure allows for easy integration into various setups while maintaining a space-efficient design

01

features
cost effective

This screen provides cost savings through efficient material handling and long-lasting performance.

02

features
Easy to Maintain

Designed for minimal downtime, the screen's components are easy to access for regular maintenance, keeping operations running smoothly.

03

Modals

VS400150-2D VS400150-2D

Stationary jaw crushers VS400150 2D-series

VS400150 2D

Screening Area m2

6

  • Number Of Decks

    2

  • Drive Power kW (hp)

    15kW (20hp)

VS400150 2D
VS400150-3D VS400150-3D

Stationary jaw crushers VS400150 3D-series

VS400150 3D

Screening Area m2

6

  • Number Of Decks

    3

  • Drive Power kW (hp)

    15kW (20hp)

VS400150 3D

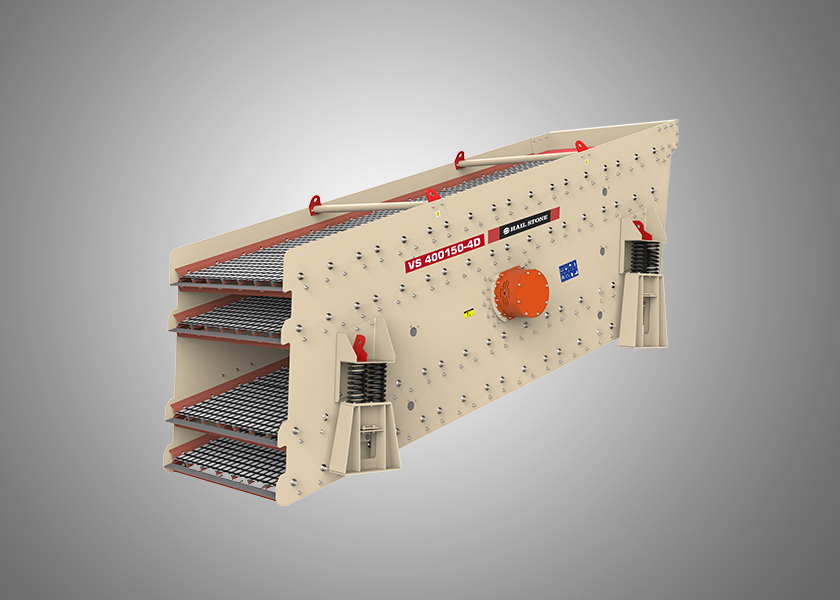

VS400150-4D VS400150-4D

Stationary jaw crushers VS400150 2D-series

VS400150 4D

Screening Area m2

6

  • Number Of Decks

    4

  • Drive Power kW (hp)

    15kW (20hp)

VS400150 4D

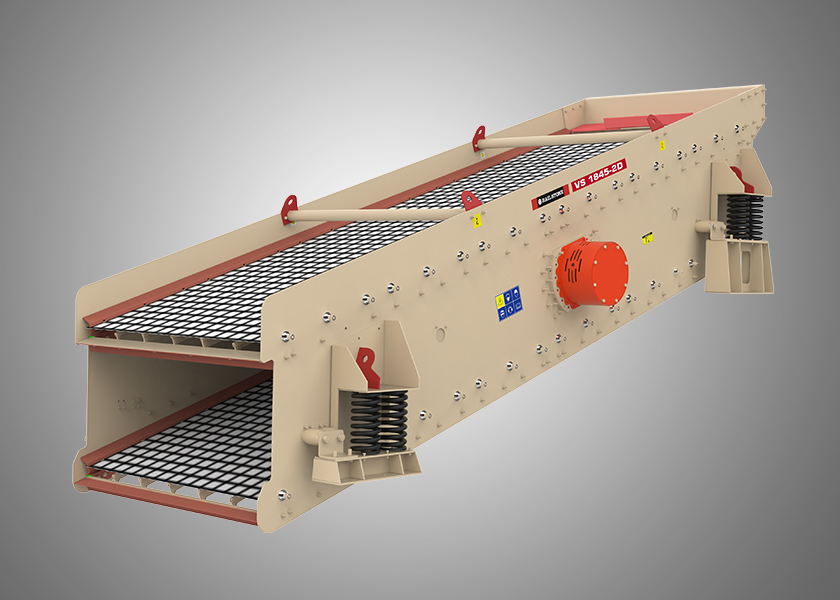

VS1845-2D VS1845-2D

Stationary jaw crushers VS1845 2D-series

VS1845 2D

Screening Area m2

8.3

  • Number Of Decks

    2

  • Drive Power kW (hp)

    15kW (20hp)

VS1845 2D

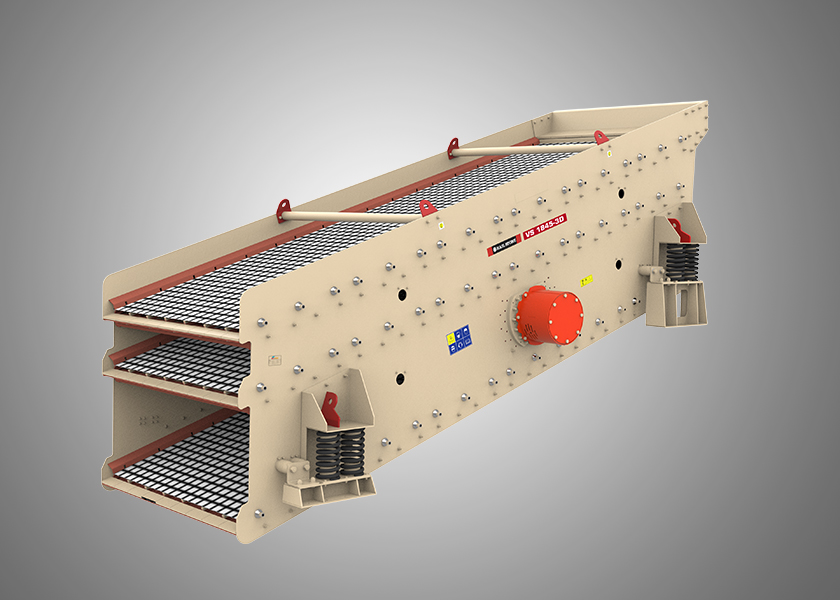

VS1845-3D VS1845-3D

Stationary jaw crushers VS1845 3D-series

VS1845 3D

Screening Area m2

6

  • Number Of Decks

    3

  • Drive Power kW (hp)

    15kW (20hp)

VS1845 3D
VS1845-4D VS1845-4D

Stationary jaw crushers VS1845 4D-series

VS1845 4D

"Screening Area m2"

6

  • Number Of Decks

    4

  • "Drive Power kW (hp)

    15kW (20hp)

VS1845 4D
VS1855-3D VS1855-3D

Stationary jaw crushers VS400150 2D-series

VS1855 3D

Screening Area m2

10.17

  • Number Of Decks

    3

  • Drive Power kW (hp)

    15kW (20hp)

VS1855 3D
VS1855-4D VS1855-4D

Stationary jaw crushers VS1855 4D-series

VS1855 4D

Screening Area m2

10.17

  • Number Of Decks

    4

  • "Drive Power kW (hp)

    22kW (20hp)

VS400150 2D
VS600200-2D VS600200-2D

Stationary jaw crushers VS600200 2D-series

VS600200 2D

Screening Area m2

12

  • Number Of Decks

    2

  • "Drive Power kW (hp)

    15kW (20hp)

VS400150 2D
VS600200-3D VS600200-3D

Stationary jaw crushers VS600200 3D-series

VS600200 3D

Screening Area m2

12

  • Number Of Decks

    3

  • Drive Power kW (hp)

    22kW (20hp)

VS400150 2D

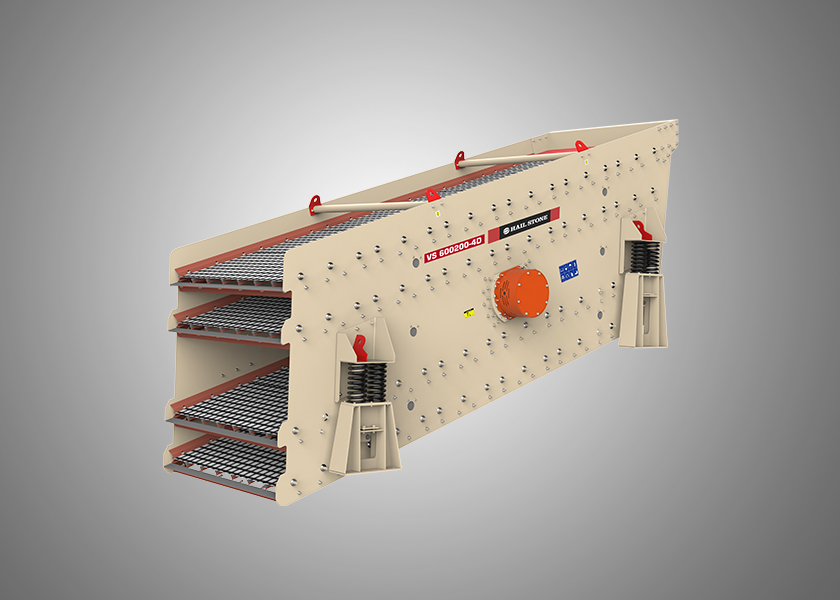

VS600200-4D VS600200-4D

Stationary jaw crushers VS600200 4D-series

VS600200 4D

Screening Area m2

12

  • Number Of Decks

    4

  • "Drive Power kW (hp)

    22kW (20hp)

VS400150 2D
VS610260-3D VS610260-3D

Stationary jaw crushers VS610260 3D-series

VS610260 3D

Screening Area m2

15.86

  • Number Of Decks

    3

  • Drive Power kW (hp)

    30kW (20hp)

VS610260 4D
VS610260-4D VS610260-4D

Stationary jaw crushers VS610260 4D-series

VS610260 4D

Screening Area m2"

15.86

  • Number Of Decks

    4

  • "Drive Power kW (hp)

    30kW (20hp)

VS400150 2D

Technical Specification

HF Series

VIBRATING SCREENVS Series
ModelLength mmWidth mm Screening Area m2 Approximate Weight kg (lbs)Approximate Decks Drive Power kW (hp)
VS400150-2D4000150064051 (8931)215 (20)
VS400150-3D4560 (10053)315 (20)
VS400150-4D6294 (13876)415 (20)
VS1845-2D450018508.34400 (9700)215 (20)
VS1845-3D5220 (11508)315 (20)
VS1845-4D6240 (13757)415 (20)
VS1855-3D5500185010.176350 (14000)315 (20)
VS1855-4D7560 (16667)422 (30)
VS600200-2D60002000125161 (11378)215 (20)
VS600200-3D8015 (17670)322 (30)
VS600200-4D9320 (20547)422 (30)
VS610260-3D6100260015.8613000 (28660 )330 (40)
VS610260-4D16000 (35274)430 (40)
