Our Cone Crusher is designed to handle various applications, offering flexibility across different crushing stages for optimal performance.
Equipped with advanced safety features, our Cone Crusher ensures protection for operators and minimizes risks during operation.
Built with ease of use in mind, this crusher simplifies complex operations, allowing for quicker adjustments and maintenance.
Stationary cone crushers HF-150 Series
58 - 160 mTPH
160 (65/16)
75 kW - 110 kW (100 hp - 150 hp)
Stationary cone crushers HF-220 Series
70 - 260 mTPH
172 (619/25)
132 kW to 160 kW (180hp to 220 hp)

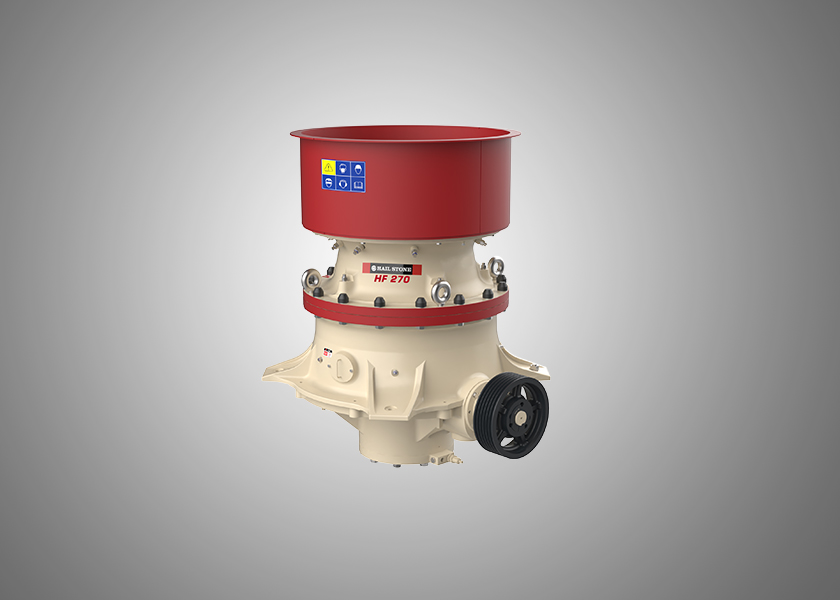

Stationary cone crushers HF-270 Series
70 - 280 mTPH
213 (782/5)
132 kW - 220 kW (175 hp - 300 hp)
Stationary cone crushers HF-150 Series
99 - 286 mTPH
190 (71/2)
160kW (220 hp)
Stationary cone crushers EC-3000 Series
90 - 400 mTPH
200 (77/8)
225 kW (300 hp)

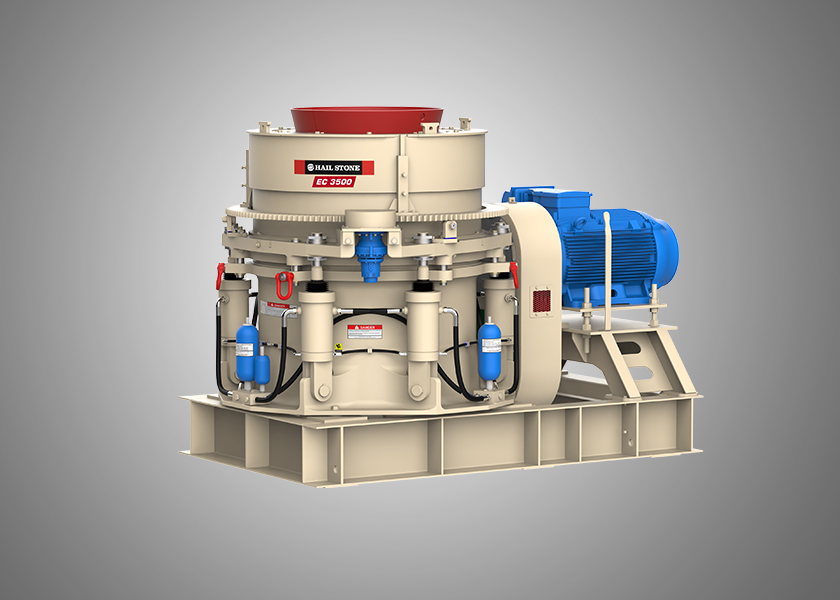

Stationary cone crushers EC-3500 Series
127 - 484 mTPH
241 (91/2)
250 kW (330 hp)
Stationary cone crushers EC-4000 Series
135 - 555 mTPH
255(10)
315 kW (425 hp)
| CONE CRUSHER | HF Series | ||
|---|---|---|---|
| Model | HF150 | HF220 | HF270 |
| Drive power, kW (hp) | 75 - 110 (100 - 150) | 132 - 160 (180 - 220) | 132 - 220 (175 - 300) |
| Total weight, kg (lbs) | 10520 (23143) | 13500 (29765) | 15800 (34833) |
| Stroke options, mm (in) | 25,30 (1, 13/16) | 18,22,28,36 (11/16, 7/8, 1 7/64, 1 13/32) | 18,25,28,32,36,40 (11/16, 1, 1 7/64, 1 1/4, 1 13/32, 1 9/16) |
| Cavity | Feed opening | ||
| Fine, mm (in) | - | - | 90(335/64) |
| Medium fine, mm (in) | 95 (3 3/4) | 90 (3 27/50) | - |
| Coarse, mm (in) | 160 (6 5/16) | 172 (6 19/25) | 213 (7 82/5) |
| "Closed Side Setting | |||
| mm (in)" | Capacity (Mtph) | ||
| HF150 | HF220 | HF270 | |
| 8 ( 5/16) | - | - | 70 - 90 |
| 10 (3/8) | 58 - 95 | 70 - 90 | 80 - 130 |
| 15 (19/32) | 65 - 123 | 77 - 99 | 105 - 175 |
| 20 (25/32) | 84 - 135 | 100 - 110 | 120 - 230 |
| 25 (1) | 105 - 147 | 126 - 165 | 150 - 265 |
| 30 (1 3/16) | 132 - 160 | 144 - 205 | 165 - 280 |
| 35 (1 3/8) | - | 162 - 250 | - |
| 40 (1 9/16) | - | 175 - 260 | - |
| CONE CRUSHER | EC Series | |||
|---|---|---|---|---|

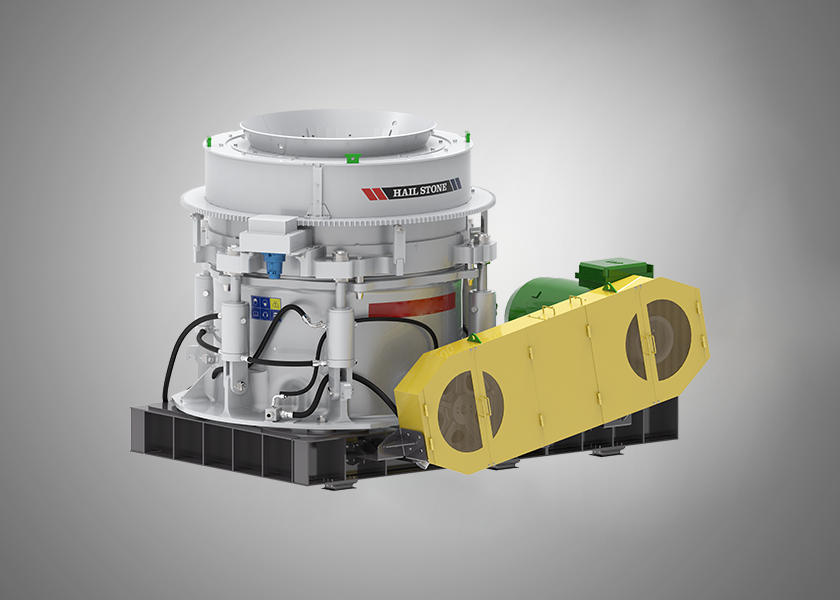

| Model | EC2500 | EC3000 | EC3500 | EC4000 |
| Maximum feed opening, mm (in) | 190 (7 1/2) | 200 (7 7/8) | 241 (91/2) | 255 (10) |
| Total weight, kg (lbs) | 17000 (37480) | 21500 (47400) | 24000 (52911) | 26500 (58423) |
| Drive power, kW (hp) | 160 (220) | 225 (300) | 250 (335) | 315 (425) |
| Closed Side Setting mm (in) | Capacity (Mtph) | |||
| EC2500 | EC3000 | EC3500 | EC4000 | |
| 8 (5/16) | - | 90 - 130 | - | 135 - 175 |
| 10 (3/8) | 99 - 143 | 105 - 150 | 127 - 154 | 155 - 210 |
| 13 (1/2) | 132 - 176 | 130 - 185 | 165 - 204 | 195 - 265 |
| 16 (5/8) | 149 - 204 | 155 - 230 | 198 - 242 | 235 - 315 |
| 19 (3/4) | 165 - 215 | 180 - 250 | 220 - 264 | 260 - 345 |
| 22 (7/8) | 176 - 231 | 190 - 260 | 242 - 286 | 285 - 375 |
| 25 (1) | 187 - 253 | 210 - 290 | 253 - 308 | 300 - 400 |
| 32 (1 1/4) | 204 - 264 | 220 - 310 | 275 - 352 | 310 - 440 |
| 38 (1 1/2) | 220 - 286 | 240 - 350 | 330 - 418 | 360 - 500 |
| 45 (1 3/4) | - | 280 - 400 | 385 - 484 | 400 - 555 |
